WUFI

Hi
The textured coated brick material properties seem inconsistent.
The moisture storage function gives a water content of 89 kg/m3
The liquid transport coefficient give 320 kg/m3
I had thought these two numbers represent free water saturation and so should be the same?

When clicking 'generate' on ...

Hi all

I've been following the Guideline for the evaluation and assessment of hygrothermal calculation results.
I understand what it is saying and seems like a useful guide.
However I don't understand the point of assessing condensation risk when the risk of mould growth is inevitably going to be ...

At the moment it does not look like it is possible to output the results from VTT to allow manipulation in Excel or another software, as one can do with WUFI itself.
Is this feature going to be incorporated in the future? If not can I request it please?
VTT is quite user-friendly but it does not ...

Thanks Daniel
Looking forwards to the rot tool.

Hello!
For example
https://www.wufi-wiki.com/mediawiki/ind ... .X:Results

See attached.
Thank you

The movies in the wufi wiki require Adobe Flash player.
Adobe no longer supports Flash player.
Is there another format we can view these movies in please?

Dear all

20% moisture content is a typical value to use when assessing wood rot.

But wood that has been protected using chemicals will presumably allow increased moisture content before the onset of rot.
I can't find any information online to suggest a suitable moisture content to use when ...

Thanks Christian

Hi Christian
That is very helpful thank you.
However I'm looking at this sort of build-up which is not in the guidelines you have linked to.

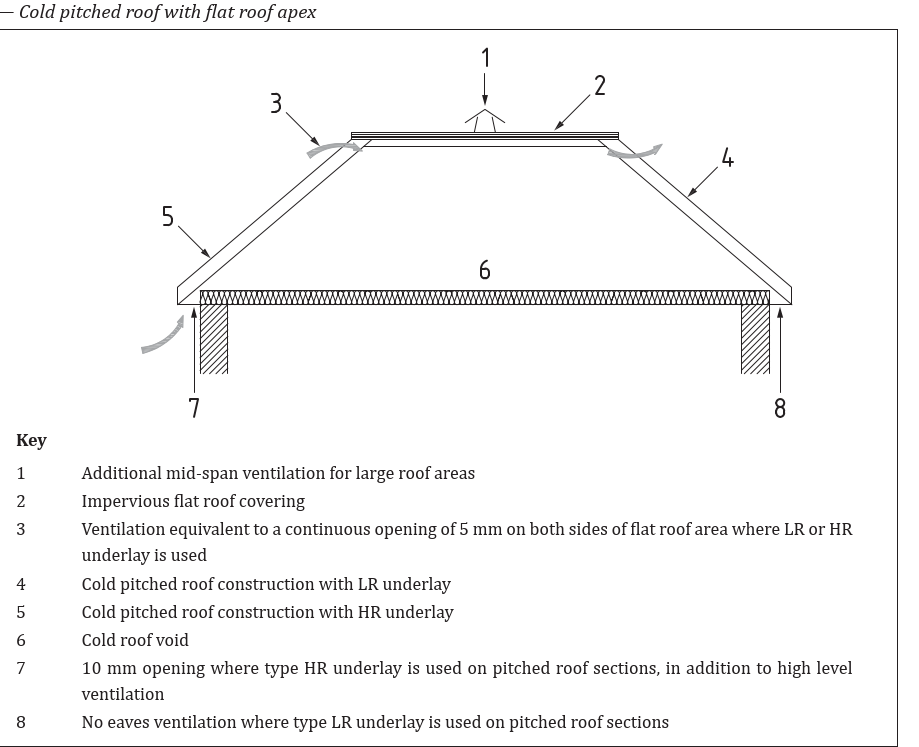

Do you think WUFI is an appropriate tool for this? Image is from EN 5250
Thank you
D

I've also been asked to look at a cold roof situation to determine the amount of ventilation needed.
Is there any guidance on doing this in WUFI please?

Thank you Christian

Dear all
We've been following this guidance on assessing moisture risk in a stone and brick wall insulated with mineral wool internally.
https://wufi.de/de/wp-content/uploads/sites/9/2017.07_2_How_To_Condensation_Risk.pdf

The useful guide is for a roof.
The example contains no substrate, eg timber ...

Hi all

I'm attempting to model a ventilated cavity as accurately as I can.
I've read the useful information in the WUFI help and here: https://wufi.de/en/service/wufi-forum/?forum=/viewtopic.php?f=32&t=1968&sid=cd83f64c66fe6d2526b84fa5708d45cf

I have standard UK new building brick cavity wall ...

Wonderful.
Thank you.

Hi all
I had a good search in the forum and couldn't find an answer to what I thought would be simple (easy and complex right?!).

I want to model a cavity drain to see the impact that a moisture sink has.
Reading around it looks like I need to enter a Moisture Source with a negative value. However ...
